บทนำ
PCB Assembly เป็นกระบวนการที่ต้องใช้ความรู้ไม่ได้เป็นเพียงส่วนประกอบของ PCB และการชุมนุม แต่ยังของการออกแบบแผงวงจรพิมพ์การผลิต PCB และความเข้าใจที่ดีของผลิตภัณฑ์สุดท้าย การประกอบแผงวงจรเป็นเพียงหนึ่งชิ้นส่วนของปริศนาที่จะส่งมอบผลิตภัณฑ์ที่สมบูรณ์แบบเป็นครั้งแรก
ซานฟรานซิสวงจรเป็นโซลูชั่นแบบครบวงจรสำหรับการให้บริการวงจรทั้งหมดดังนั้นเราจึงมักจะยึดติดกับกระบวนการผลิต PCB จากการออกแบบเพื่อการชุมนุม ผ่านเครือข่ายที่แข็งแกร่งของเราดีพิสูจน์ประกอบวงจรและการผลิตคู่ค้าเราสามารถให้ความสามารถในการที่ทันสมัยที่สุดและเกือบไร้ขีด จำกัด สำหรับต้นแบบหรือ PCB ผลิตโปรแกรมประยุกต์ของคุณ ช่วยตัวเองปัญหาที่มาพร้อมกับขั้นตอนการจัดซื้อจัดจ้างและการจัดการกับผู้ขายหลายองค์ประกอบ ผู้เชี่ยวชาญของเราจะพบคุณส่วนที่ดีที่สุดสำหรับผลิตภัณฑ์ขั้นสุดท้ายของคุณ
PCB บริการสมัชชา:
ประกอบต้นแบบอย่างรวดเร็วเลี้ยว
ประกอบเทิร์นคีย์
ประกอบเทิร์นคีย์บางส่วน
ประกอบสินค้าฝากขาย
ประกอบตะกั่วมาตรฐาน RoHS
แบบไม่เป็นไปตามมาตรฐานการชุมนุม
เคลือบมาตราส่วน
รอบชิงชนะเลิศกล่องสร้างและบรรจุภัณฑ์
กระบวนการ PCB Assembly
เจาะ ----- ----- ที่ได้รับการชุบจุดเชื่อม ----- Etaching & การปอก ----- ----- เจาะทดสอบระบบไฟฟ้า ----- ----- SMT บัดกรีคลื่น --- --Assembling ----- ----- ICT ทดสอบฟังก์ชั่น ----- อุณหภูมิความชื้นและทดสอบ
บริการทดสอบ
X-Ray (2-D และ 3-D)
BGA X-Ray ตรวจสอบ
AOI ทดสอบ (อัตโนมัติตรวจสอบแสง)
การทดสอบการใช้ไอซีที (In-Circuit Testing)
ฟังก์ชั่นการทดสอบ (ที่คณะกรรมการและระบบระดับ)
บิน Probe
ความสามารถในการ
Surface Mount Technology / อะไหล่ (SMT ประกอบ)
ผ่านหลุมอุปกรณ์ / อะไหล่ (THD)
อะไหล่ผสม: SMT และ THD ชุมนุม
BGA / Micro BGA / uBGA
QFN, POP และนำไปสู่น้อยชิป
2800 ขานับ BGA
0201/1005 ส่วนประกอบแบบ Passive
0.3 / 0.4 ลาด
PoP แพคเกจ
พลิกชิปภายใต้เต็มไปด้วย CCGA
BGA interposer / กองขึ้น
และอื่น ๆ…
รายละเอียดสินค้า:
การชำระเงิน:
|
แสงสูง: | led pcba,pcb board assembly |
---|

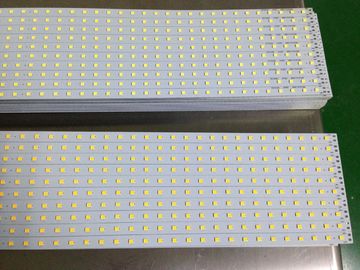

Metal Core LED Tube PCB Assembly / LED Panel PCB Boards 75Ra or 80Ra
Professional PCB Manufacturing
LED Light sources: 2835/3014/3528/5050/5630/5730/1W high power
CCT:2800-3000K,4500-5000K,6000-6500K
CRI: >75Ra,>80Ra
Luminous flux output: it is depend on customized
LED light: LED tube,LED bulb,LED ceiling light,LED downlight,LED panel light and etc.
All of the parameters can be customized!
Why us?
Quality
Our UL(E465880)/Rohs standards insure quality assemblies from start to finish. Whether it's a simple custom product or a complex turnkey production run, JHD PCB will adhere to the highest quality standards.
Capable
JHD PCB offers the latest in assembly capabilities and qualifications insuring that quality is built into every product we produce.
Experience
When it comes to your build you want a partner you can depend on. Our management team has over 8years of combined industry knowledge. Our engineering team has over 5 years experience.
Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.
Flexibility
JHD PCB prides ourselves on our ability to custom tailor programs around our customers' needs. JHD PCB takes time to listen to your unique business needs and then set out to surpass them.
Lead Time
Samples: 3-4 days
Mass Production: 7-15 days(depend on the quantity)
Payment Terms
T/T,Western Union
Packing and Shipment
Vacuum package in carton
Factory Capability
Item |
Manufacturing Capability |
Surface Treatment |
OSP |
PCB Layer Type |
Single side,Double side |
Max. Working Panel Size |
1500mm*600mm |
Min. Working Panel Size |
4mm*4mm |
AL Substrate Thickness |
0.3mm-4mm |
Min. Conductor width |
0.15mm |
Min. Conductor spacing |
0.15mm |
Min. Drilling hole size |
0.2mm |
Plate Thickness Tolerance |
±0.1mm |
Finished Panel Tolerance |
±0.1mm |
V-CUT Alignment |
±0.1mm |
Hole Dia Tolerance |
±0.05mm |
Hole Position Tolerance |
±0.076mm |
Finished Copper Thickness |
35um-105um(1oz-6oz) |
Etching Under Cut |
>/=2.0 |
PTH&Panel Plating Uniformity |
>90% |
Eing/Flash Gold Thickness |
1-5u’’ |
Solder Mask Thickness |
15um-35um |
Min. Solder Mask Bridge |
0.076mm(3mil) |
Silk Screen |
White/Black(depend on your requirements) |
Thermal Conductivity |
1.0~20W/MK |
Withstand Voltage |
AC 2000V,DC 1500~4000V |
JHD PCB Company overview
JHD PCB in the professional lighting fair
Purchase Tips
a. If you want to purchase our PCB, you should provide a formal Gerber files or *.pcb file or something like that.
b. If you want to purchase by large quantity, please ask Mr.Hank.
c. If you want to purchase the PCBA, you should provide the Gerber files, *.pcb file , BOM list etc.
d. If you want to reproduce some exsited PCB board for you, please first provide very clear pictures , then if you are satisfied with our estimate quotation, then send us the real thing, so we can clone it for you.
e. If none of the above can help you, please contact us directly by Skype, QQ or Email. We are very glad to answer the questions you ask, your satisfaction is our final destination.
JHD PCB would like to be your reliable partner in near future!
