บทนำ
แข็งดิ้นแผงวงจรพิมพ์บอร์ดโดยใช้การรวมกันของเทคโนโลยีที่คณะกรรมการมีความยืดหยุ่นและแข็งในโปรแกรมประยุกต์ ผ้าดิ้นแข็งส่วนใหญ่ประกอบด้วยหลายชั้นของพื้นผิวที่มีความยืดหยุ่นวงจรที่แนบมากับหนึ่งหรือเข้มงวดมากขึ้นกระดานภายนอกและ / หรือภายในขึ้นอยู่กับการออกแบบของแอพลิเคชัน พื้นผิวมีความยืดหยุ่นได้รับการออกแบบที่จะอยู่ในสภาพคงที่ของเฟล็กซ์และมักจะเกิดขึ้นเป็นเส้นโค้งเกร็งในระหว่างการผลิตหรือการติดตั้ง
การออกแบบดิ้นแข็งมีความท้าทายมากขึ้นกว่าการออกแบบสภาพแวดล้อมกระดานแข็งทั่วไปเช่นบอร์ดเหล่านี้ได้รับการออกแบบในพื้นที่ 3 มิติซึ่งยังมีประสิทธิภาพเชิงพื้นที่มากขึ้น โดยความสามารถในการออกแบบสามมิติออกแบบดิ้นแข็งสามารถบิดพับและม้วนพื้นผิวคณะกรรมการที่มีความยืดหยุ่นเพื่อให้บรรลุรูปร่างที่ต้องการของพวกเขาสำหรับแพคเกจโปรแกรมประยุกต์สุดท้าย
ประเภทวัสดุ
FR-4, CEM-1, CEM-3, IMS สูง TG ความถี่สูง, ฮาโลเจนฟรี, ฐานอลูมิเนียมฐานโลหะหลัก
การรักษาพื้นผิว
HASL (LF) ทองแฟลช, ENIG, OSP (นำเข้ากันได้ฟรี), หมึกคาร์บอน
Peelable S / M, Immersion AG / ดีบุกชุบทองลายนิ้วมือนิ้ว ENIG ทอง
ขั้นตอนการผลิต
ไม่ว่าจะเป็นการผลิตที่เข้มงวดดิ้นต้นแบบหรือการผลิตในปริมาณที่กำหนดขนาดใหญ่แข็ง Flex PCB และผลิต PCB Assembly เทคโนโลยีที่ได้รับการพิสูจน์อย่างดีและมีความน่าเชื่อถือ ส่วน PCB ดิ้นเป็นสิ่งที่ดีโดยเฉพาะอย่างยิ่งในการเอาชนะพื้นที่และปัญหาเกี่ยวกับน้ำหนักองศาเชิงพื้นที่ของเสรีภาพ
พิจารณาอย่างรอบคอบของการแก้ปัญหาดิ้นแข็งและการประเมินความเหมาะสมของตัวเลือกที่มีอยู่ในขั้นต้นในขั้นตอนการออกแบบ PCB ดิ้นแข็งจะกลับผลประโยชน์ที่สำคัญ มันเป็นสิ่งสำคัญที่แข็ง Fabricator Flex PCB ที่มีส่วนเกี่ยวข้องในช่วงต้นขั้นตอนการออกแบบเพื่อให้แน่ใจว่าการออกแบบและส่วน Fab มีทั้งในการประสานงานและเพื่อรองรับความหลากหลายของผลิตภัณฑ์ขั้นสุดท้าย
เข้มงวดขั้นตอนการผลิตดิ้นยังเป็นที่ซับซ้อนมากขึ้นและใช้เวลานานกว่าการผลิตกระดานแข็ง ทุกองค์ประกอบที่มีความยืดหยุ่นของสภาดิ้นแข็งมีแตกต่างกันอย่างสิ้นเชิงในการจัดการ, การแกะสลักและการบัดกรีกระบวนการกว่าบอร์ด FR4 แข็ง
ใบสมัคร
LED, การสื่อสารโทรคมนาคม, การใช้คอมพิวเตอร์, ไฟ, เครื่องเกม, การควบคุมอุตสาหกรรมไฟฟ้ารถยนต์และระดับ high-end อิเล็กทรอนิกส์สำหรับผู้บริโภค ect.a
รายละเอียดสินค้า:
|
แสงสูง: | Lead Free PCB,High Frequency PCB |
---|

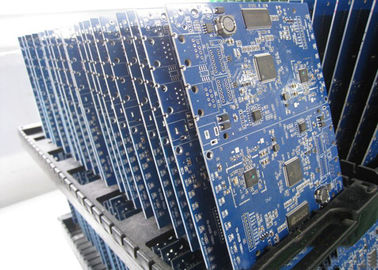

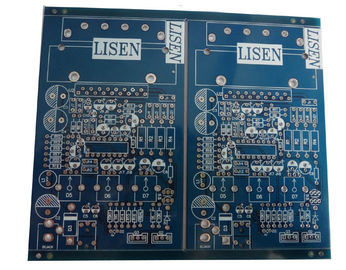

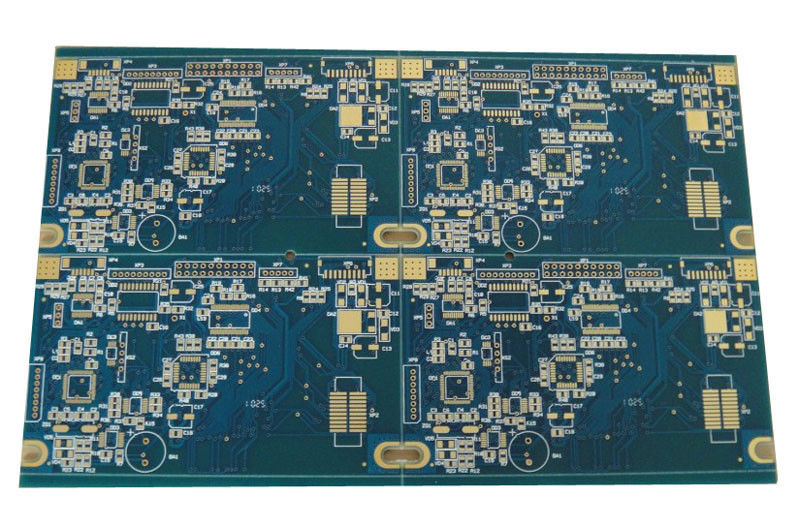

1oz LED Display Rigid PCB Board FR4 4 Layer Blue Soldermask
PCB Name: | LED Display PCB Board | Layer count | 4 Layer |
Base Material: | FR4 | Board Thickness: | 1.6mm |
Copper Thickness: | 1oz | Min. Hole Size: | 0.4mm |
Min. Line Width/Spacing: | 0.15mm/0.15mm | Surface treatment: | Immersion Gold |
Solder mask color: | Blue | Silkscreen color: | White |
Original: | PCB Shenzhen House | Service: | PCB & PCBA |
Description:
China printing circuit board house specializes in PCB prototype and low volume PCB production manufacturing. Our printing circuit board manufacturing lines are located in China, which enable us to provide high quality, tight tolerance printed circuit boards at competitive prices.
From our printing circuit board, you are able to get instant contact with us to get online PCB quote only to tell us you requirement and send us PCB Gerber. Our team is waiting for you.
Applications:
Control Systems, LED Display, Digital Theater Systems, Vacuum Tube Electronics Displays, Linear Motors and Motion Products, Computer Diagnostic Tools, Lottery Pull-Tab and Scratch-off Ticket Machines, Point-of- Sale (POS) Electronic Security Systems, Automated ITVMs (Ticket Machines), Self-Service ATMs and Kiosks, Security Door Controls, Door Card Control, Electronic Lock, Aircraft Parts/Equipment, Switching Systems, Terminal Equipment, Publicly Accessible Equipment Vending Machines, Precision Positioning Systems, Robotics System, Water Purification System, Antenna, Guitar Electronics, Position Indicators, Controllers, Memory and Non-Memory Products, Networking, Wireless Communications ect.
Specification:
Layer count |
Single sided, 2L, 4L,6L,8L,10L-26 Layers |
Base material |
FR4, High Tg FR4, CEM-3, Aluminum Base, Copper core, High frequency, Polyimide (PI), Polyester(PET) ,Rogers RO4350,Polyimide,Teflon,Getek Copper Clad Thermal Substrates |
Board thickness |
0.2mm, 0.4mm, 0.8mm, 1.0mm. 1.2mm.1.6mm.2.0mm-2.4mm, 3.2mm,4.0mm |
Maximum Board Size |
580mmx700mm |
Copper thickness |
0.5oz, 1oz, 2oz ,3oz., 4oz,5oz,6oz |
Minimum Hole Size |
0.2mm |
Minimum Trace/Space |
4mil/4mil |
Surface finish |
HASL(Hot Air Solder Level), Pb Free HASL , Electroless Nickel and Immersion Gold (ENIG), Plating Gold, Gold Fingers (Gold Connector), Silver Immersion, Organic Surface Protectant (OSP), Electroless Nickel Electroless Palladium Immersion Gold (ENEPIG),Hard Gold |
Solder Mask |
Green, Red, Blue, Black, Matte Green, Orange |
Silk Screen |
White, Yellow, Black |
PCB Fabrication |
Scoring, Route, V-Score, Counter Sink, Bevel, Cutouts and Slots |
Quality Control |
IPC 6012 Class 2, Electrical Testing, Flying probe Testing, 100% Netlist Testing |
Special Technology |
Impendence Control, Differencial PCB printed circuit board, Peelabemask PCB , High Density PCB HDI, Carbon Ink Printing,Heavy copper PCB ,Metal Core circuit boards ,Copper Clad PCB printed wiring board, Blind & Buried Vias, Laser Drilled Vias, Burn-in Boards,Backplanes, Bonded heat sinks, Controlled depth drilling, Controlled Impedance, Filled/plugged vias, Heavy copper, HDI, Large format PCB, Landless vias, Printed Electronics, RF
|
Advantage:
1. We offer low-cost PCB prototypes. No minimum order limit.
2. Fast quotation, 24 hour prompt response.
3. Our PCB factory is ISO/TS approved and with high & advanced production capabilities.
4. We are full service provider. Our services include PCB manufacturing, PCB assembly, components sourcing, stencil, also PCB layout, from specification to final production turnkey service. It is your good choice for one stop PCB solutions.
5. We provide technical and professional support, satisfactory customer service.
Contact us with your detail PCB requirement Now!
